Plastic 2x4 PLC Splitter LGX cassette Modular with LC/APC Duplex Fiber Optic Connector Blue
Form a unified standard optical splitter, plug-piece modular structure, can be used in optical cable transfer box,
optical splitter boxes and 19-inch rack, the product structure tso facilitate the optical splitter installation
and replacement.
These modules are compatible with all of our rack and wall mount enclosures & patch panels, available in all
connector types. Push/pull fasteners make plates easy to install and remove for service. All modules are made
of plastic. Cassette Face plates are standard LGX dimensions and compatible with most manufacturers.
LGX Box Dimension:
| Splitting ratio | Dimension (H×W×D)mm |
| 1x2 / 2x2 (Inserts) | 130×100×25 |
| 1x4 / 2x4 (inserts) |
| 1x8 / 2x8(Inserts) |
| 1x16 / 2x16 (Inserts) | 130×100×50 |
| 1x32 / 2x32 (Inserts) | 267×100×50 |
Product details:
top and back view: top with labels: item name, part number, serial number, if you have brand, can OEM.

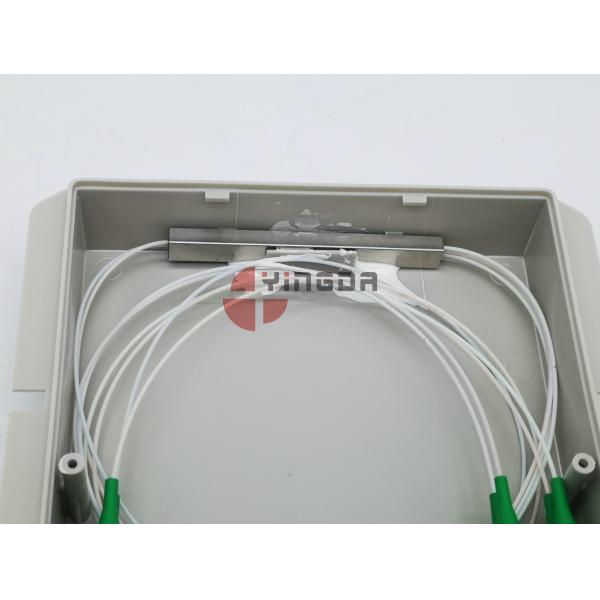

Inner box with 1pc 2x4 plc splitter steel tube 900um G657A1 LSZH, white color tube + 3 pcs LC/APC duplex adapters
there is steel tube fixing slot, with glue to fix.
each box with 1 sheet test report, all the tube is fixed on the back bottom of the box, it will be stable during transporation.
there is plastic blocks to prevent the dust, wet or insect from entering, if future need to use, take it off by hand.
Application:
CATV/Telecom/LAN/WAN/Data Centers/Medical/Military/Wireless/Broadband
Order information:
PLC-LGX-XXX/XXX
- 1 / 2
| PLC | 1 Split ratio | 2 connector in/out port |
| LGX Modular | 102=1*2 104=1*4 ... | SA=SC/APC SU=SC/UPC ST=ST ... |
